Installation Guide for Socket Serials
Step 1 :

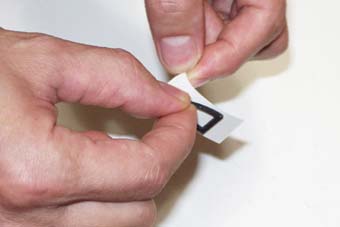

Peel off the plastic film of urethane foam, and put it around CPU.
Rectangle urethane foam for Intel and AMD
  socket processor except Intel P III Tualatin
  and AMD Athlon XP.
Square urethane foam for Intel and AMD
 socket processor except Intel P III Tualatin.
Step 2 :
Put a little thermal grease on the CPU Die.

Step 3 :

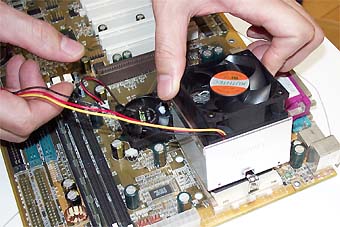

Attach the hook of clip onto socket tab, verify the cooler and CPU are in the right position.

Step 4 :

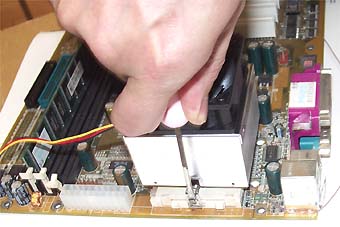

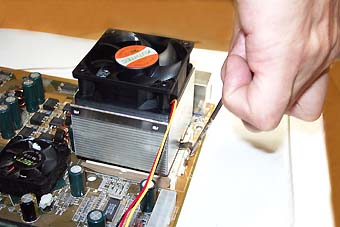

Insert the screwdriver flat head into the clip. To press downward and outward motion until the another hook onto socket tab of cam box side.




Step 5:

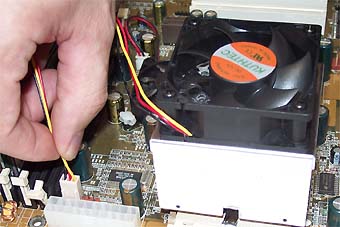

Verify whether the clip two ends are completely hooked onto socket tabs or not. Then connect cooler fan onto motherboard fan power connector.



When you done assembly completely, please double check if stainless clip well engaged and plug in right with power.
