HoneycomB
|
|
 |
 |
 |
 |
|
KTM-2000 |
KTM-2001 |
| Features : | |
| ◆ | Designed for the following processors : |
|
Intel Pentium III Tualatin, all CuMine
and Celeron processors family. |
|
| ◆ | The patented design of a "multi-channel wind tunnel". |
| ◆ |
The copper core faster and more intensive transfer heat from processor to aluminum heat sink. |
| ◆ | 3D-isotropy thermal conductive path. |
| ◆ | Two kind of different metal materials made precision combination. |
| ◆ | Patent clip of hinge cross vertically on processor. |
| ◆ | Air flow directly cross into heat sink "multi-channel wind tunnel". |
| ◆ | The application of a CPU protection cushion with the functions of "shaking absorption and breakage proof". |
| Specifications: |
|
| ◆ | Application: |
| Model No. |
CPU | Dim. | Fan |
|
KTM-2000
|
Intel PIII all CuMine and Celeron processors family Intel PIII Tualatin processors AMD all Duron family AMD Athlon 1.4 GHz and beyond AMD Athlon XP 2500+ and beyond. |
67x62.5x60mm |
60x60x10mm |
|
KTM-2001
|
Intel PIII all CuMine and Celeron processors family Intel PIII Tualatin processors. AMD all Duron family AMD Athlon 1.6 GHz and beyond AMD Athlon XP 3200+ and beyond. |
67x62.5x70mm |
60x60x20mm |
|
KTM-2002 |
Intel PIII all CuMine and Celeron processors family Intel PIII Tualatin processors. AMD all Duron family AMD Athlon 1.8 GHz and beyond AMD Athlon XP 3200+ and beyond. |
67x62.5x75mm |
60x60x25mm |
| ◆ | Heat sink : |
| Dimension :67(L) x62.5(W)x50(H)
mm Materials : Copper C1100 Aluminum Aluminum Alloy 1050 |
|
| ◆ | Clip : |
| Material : | |
| SUS 301 | |
| ◆ | Fan : |
| Dimension | 60x60x10mm | 60x60x20mm | 60x60x25mm |
|
Rated Voltage DCV
|
12 | 12 | 12 |
|
Rated current A
|
0.19~0.3 | 0.28 | 0.39 |
|
Input Power W
|
2.28~3.6 | 3.36 | 4.68 |
|
Speed RPM
|
4800~5300 | 4900 | 7000 |
|
Air flow CFM
|
19.1~24.4 |
25.8 | 38.4 |
|
Static pressure mmH2O
|
3.46~4.6 | 5.51 | 13.4 |
|
Noise dB(A)
|
39.3~40 | 37.0 | 46.7 |
|
Fan speed detection
|
Yes | Yes | Yes |
|
Fan Certification
|
UL/CE | CUL/CE | CUL/CE |

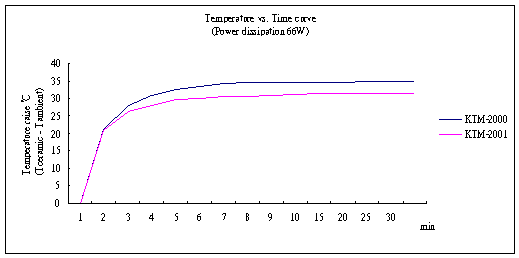

| Temperature vs. Time curve |
 |
