KTM-2100 |
KTM-2101 |
| Features : | |
| ◆ | Designed for the following processors : |
|
Intel Pentium III Tualatin, all CuMine
and Celeron processors family. |
|
| ◆ | The patented design of a "multi-channel wind tunnel". |
| ◆ |
The copper core faster and more intensive transfer heat from processor to aluminum heat sink. |
| ◆ | The temperature dissipated characteristic of "high density fins ". |
| ◆ | Two kind of different metal materials made precision combination. |
| ◆ | Patent clip of hinge cross vertically on processor. |
| ◆ | Air flow directly cross into heat
sink " multi-channel wind tunnel". |
| ◆ | The application of a CPU protection cushion with the functions of "shaking absorption and breakage proof". |
| Specifications: |
|
| ◆ | Application: |
|
Model No. |
CPU | Dim. | Fan |
|
KTM-2100
|
Intel PIII all CuMine and Celeron processors family. |
80x62.5x60mm |
60x60x10mm |
|
KTM-2101
|
Intel PIII all CuMine and Celeron processors family. Intel PIII Tualatin processors. AMD all Duron family AMD Athlon 1.8 GHz and beyond AMD Athlon XP 3200+ and beyond. |
80x62.5x70mm | 60x60x20mm |
|
KTM-2102 |
Intel PIII all CuMine and Celeron processors family. Intel PIII Tualatin processors. AMD all Duron family AMD Athlon 2.0 GHz and beyond AMD Athlon XP 3200+ and beyond. |
80x62.5x75mm | 60x60x25mm |
| ◆ | Heat sink : |
|
Dimension : 80(L) x62.5(W)x50(H)
mm |
|
| ◆ | Clip : |
| Material : | |
| SUS 301 | |
| ◆ | Fan : |
|
Dimension
|
60x60x10mm
|
60x60x20mm
|
60x60x25mm |
|
Rated Voltage DCV
|
12
|
12
|
12 |
|
Rated current A
|
0.19~0.3
|
0.28
|
0.39 |
|
Input Power W
|
2.28~3.6
|
3.36
|
4.68 |
|
Speed RPM
|
4800~5300
|
4900
|
7000 |
|
Air flow CFM
|
19.1~24.4
|
25.8
|
38.4 |
|
Static pressure mmH2O
|
3.46~4.6
|
5.51
|
13.4 |
|
Noise dB(A)
|
39.3~40
|
37.0
|
46.7 |
|
Fan speed detection
|
Yes
|
Yes
|
Tes |
|
Fan Certification
|
UL/CE
|
CUL/CE
|
CUL/CE |
|
|
|||
|

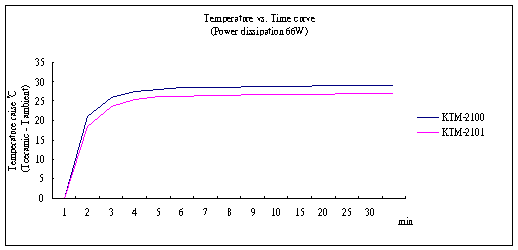

Temperature vs. Time curve |
|||
 |
